IR Thermography Test
IR Thermography Test
Infrared thermography uses thermal imaging to assess electrical systems for hidden issues such as overheating connections and components. By detecting temperature abnormalities that are not visible to the naked eye, it helps prevent equipment failures, electrical fires, and costly downtime. This non-invasive technique converts heat signatures into visual thermal images, where color variations (such as reds and yellows) highlight potential hot spots. Identifying these issues early allows qualified technicians to take corrective action during scheduled maintenance, improving safety, reliability, and overall asset life.
How It Works

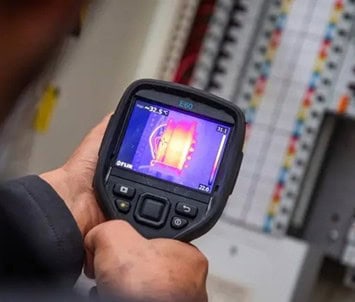

- An infrared camera detects the thermal energy (heat) emitted by electrical components.
- This energy is processed into a visual thermal image, or thermogram, with different colors representing temperature differences.
- Hot spots—commonly shown in red or yellow—indicate areas of increased resistance, load, or mechanical stress.
Common Applications
- Electrical panels and switchgear: Detects loose connections, overloaded circuits, and faulty breakers.
- Transformers and motors: Identifies abnormal heating in windings, bearings, and motor housings.
- Power distribution systems: Evaluates substations, capacitor banks, busbars, and distribution equipment.
- Other facilities: Useful in manufacturing plants, data centers, hospitals, and other environments with critical electrical systems.
Benefits
- Non-invasive and non-destructive: Inspections can be completed without shutdowns or service interruptions.
- Preventive maintenance: Enables repairs to be planned before failures occur, reducing unplanned outages.
- Improved safety: Helps prevent electrical fires caused by overheating or faulty components.
- Cost savings: Minimizes downtime, reduces repair costs, and improves energy efficiency.
- Extended equipment life: Regular thermal screening supports long-term reliability and healthier electrical assets.
